celeritas::optical::GeneratorAction< G > Class Template Reference

Generate photons from optical distribution data. More...

#include <GeneratorAction.hh>

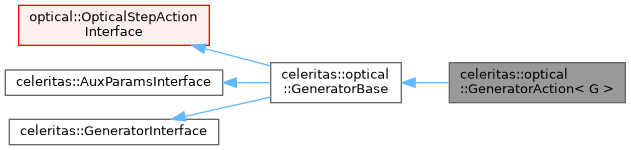

Inheritance diagram for celeritas::optical::GeneratorAction< G >:

Classes
struct	Input
	Generator input data. More...

Public Types
Type aliases
using	TraitsT = detail::GeneratorTraits< G >
template<Ownership W, MemSpace M>
using	Data = typename TraitsT::template Data< W, M >
using	SPConstParams = std::shared_ptr< typename TraitsT::Params const >
using	SPConstMaterial = std::shared_ptr< MaterialParams const >
Public Types inherited from celeritas::ActionTypeTraits< P, S >
using	CoreParams = P
using	CoreStateHost = S< MemSpace::host >
using	CoreStateDevice = S< MemSpace::device >
using	SpanCoreStateHost = Span< S< MemSpace::host > *const >
using	SpanCoreStateDevice = Span< S< MemSpace::device > *const >
Public Types inherited from celeritas::AuxParamsInterface
using	UPState = std::unique_ptr< AuxStateInterface >
	Default destructor.

Public Member Functions
	GeneratorAction (ActionId, AuxId, GeneratorId, Input &&)
	Construct with action ID, data IDs, and optical properties.
Aux interface
UPState	create_state (MemSpace, StreamId, size_type) const final
	Build state data for a stream.
StepAction interface
void	step (CoreParams const &, CoreStateHost &) const final
	Execute the action with host data.
void	step (CoreParams const &, CoreStateDevice &) const final
	Execute the action with device data.
Public Member Functions inherited from celeritas::optical::GeneratorBase
	GeneratorBase (ActionId id, AuxId aux_id, GeneratorId gen_id, std::string_view label, std::string_view description) noexcept(!CELERITAS_DEBUG)
	Construct with IDs, label, and description.
template<MemSpace M>
void	update_counters (optical::CoreState< M > &) const
	Update the generator and state counters.
AuxId	aux_id () const final
	Index of this class instance in its registry.
ActionId	action_id () const final
	ID of the action.
std::string_view	label () const final
	Short name for the action.
std::string_view	description () const final
	Description of the action.
StepActionOrder	order () const final
	Dependency ordering of the action.
GeneratorId	generator_id () const final
	ID of the generator.
GeneratorStateBase &	counters (AuxStateVec &) const final
	Get generator counters (mutable).
GeneratorStateBase const &	counters (AuxStateVec const &) const final
	Get generator counters.
Public Member Functions inherited from celeritas::StepActionInterface< P, S >
virtual void	step (P const &, S< MemSpace::host > &) const =0
	Execute the action with host data.
virtual void	step (P const &, S< MemSpace::device > &) const =0
	Execute the action with device data.
Public Member Functions inherited from celeritas::ActionInterface
virtual	~ActionInterface () noexcept=0
	Default destructor.
Public Member Functions inherited from celeritas::AuxParamsInterface
virtual	~AuxParamsInterface ()
	Default destructor.
Public Member Functions inherited from celeritas::GeneratorInterface
virtual	~GeneratorInterface ()
	Default destructor.

Static Public Member Functions
static std::shared_ptr< GeneratorAction >	make_and_insert (::celeritas::CoreParams const &, CoreParams const &, Input &&)
	Construct and add to core params.

Additional Inherited Members
Protected Member Functions inherited from celeritas::ActionInterface
	CELER_DEFAULT_COPY_MOVE (ActionInterface)
Protected Member Functions inherited from celeritas::AuxParamsInterface
	AuxParamsInterface ()=default
	CELER_DEFAULT_COPY_MOVE (AuxParamsInterface)
	Default destructor.
Protected Member Functions inherited from celeritas::GeneratorInterface
	CELER_DEFAULT_COPY_MOVE (GeneratorInterface)

Detailed Description

template<GeneratorType G>
class celeritas::optical::GeneratorAction< G >

Generate photons from optical distribution data.

This samples and initializes optical photons directly in a track slot in a reproducible way. Multiple threads may generate initializers from a single distribution.

Member Function Documentation

create_state()

template<GeneratorType G>

auto celeritas::optical::GeneratorAction< G >::create_state ( MemSpace  m, StreamId  id, size_type    ) const

finalvirtual

Build state data for a stream.

Implements celeritas::AuxParamsInterface.

---

The documentation for this class was generated from the following files:

• GeneratorAction.hh
• GeneratorAction.cc
• GeneratorAction.cu
