celeritas::AuxParams< P, S > Class Template Reference

Construct and manage portable dynamic data. More...

#include <AuxParams.hh>

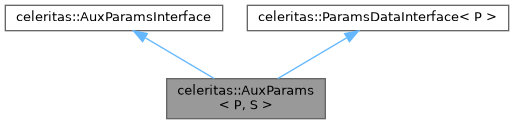

Inheritance diagram for celeritas::AuxParams< P, S >:

Public Types
Type aliases
template<MemSpace M>
using	StateRefT = S< Ownership::reference, M >
Public Types inherited from celeritas::AuxParamsInterface
using	UPState = std::unique_ptr< AuxStateInterface >
	Default destructor.
Public Types inherited from celeritas::ParamsDataInterface< P >
using	HostRef = HostCRef< P >
using	DeviceRef = DeviceCRef< P >

Public Member Functions
UPState	create_state (MemSpace, StreamId, size_type size) const final
	Build a multithread state for a stream.
template<MemSpace M>
StateRefT< M > const &	state_ref (AuxStateVec const &v) const
template<MemSpace M>
StateRefT< M > &	state_ref (AuxStateVec &v) const
template<MemSpace M>
auto	state_ref (AuxStateVec const &v) const -> StateRefT< M > const &
	Access the state ref (const).
template<MemSpace M>
auto	state_ref (AuxStateVec &v) const -> StateRefT< M > &
	Access the state ref (mutable).
Public Member Functions inherited from celeritas::AuxParamsInterface
virtual	~AuxParamsInterface ()
	Default destructor.
virtual AuxId	aux_id () const =0
	Index of this class instance in its registry.
virtual std::string_view	label () const =0
	Label for the auxiliary data.
Public Member Functions inherited from celeritas::ParamsDataInterface< P >
virtual HostRef const &	host_ref () const =0
	Reference CPU geometry data.
virtual DeviceRef const &	device_ref () const =0
	Reference managed GPU geometry data.
template<MemSpace M>
P< Ownership::const_reference, M > const &	ref () const
template<MemSpace M>
P< Ownership::const_reference, M > const &	ref () const
	Dispatch a "ref" call to host or device data.

Additional Inherited Members
Protected Member Functions inherited from celeritas::AuxParamsInterface
	AuxParamsInterface ()=default
	CELER_DEFAULT_COPY_MOVE (AuxParamsInterface)
	Default destructor.
Protected Member Functions inherited from celeritas::ParamsDataInterface< P >
	CELER_DEFAULT_COPY_MOVE (ParamsDataInterface)

Detailed Description

template<template< Ownership, MemSpace > class P, template< Ownership, MemSpace > class S>
class celeritas::AuxParams< P, S >

Construct and manage portable dynamic data.

Template Parameters

P	Params collection group
S	State collection group

This generalization of the Celeritas data model (api_data_model in user manual) manages some of the boilerplate code for the common use case of having portable "params" data (e.g., model data) and "state" data (e.g., temporary values used across multiple kernels or processed into user space). Each state/stream will have an instance of AuxState accessible by this class. An instance of this class can be shared among multiple actions, or an action could inherit from it.

Example:

The StepParams inherits from this class to provide access to host and state data. The execution inside StepGatherAction provides views to both the params and state data classes:

// Extract the local step state data
auto const& step_params = params_->ref<MemSpace::native>();
auto& step_state = params_->ref<MemSpace::native>(state.aux());

// Run the action
auto execute = TrackExecutor{
    params.ptr<MemSpace::native>(),
    state.ptr(),
    detail::StepGatherExecutor<P>{step_params, step_state}};

Note

For the case where the aux state data contains host-side classes and data (e.g., an open file handle) you must manually set up the params/state data using AuxStateInterface and AuxParamsInterface .

Member Function Documentation

create_state()

template<template< Ownership, MemSpace > class P, template< Ownership, MemSpace > class S>

auto celeritas::AuxParams< P, S >::create_state ( MemSpace  m, StreamId  sid, size_type  size  ) const

inlinefinalvirtual

Build a multithread state for a stream.

See AuxState .

Implements celeritas::AuxParamsInterface.

---

The documentation for this class was generated from the following file:

• AuxParams.hh
