celeritas::DTMixMucfModel Class Reference

Muon-catalyzed fusion model for dd, dt, and tt molecules. More...

#include <DTMixMucfModel.hh>

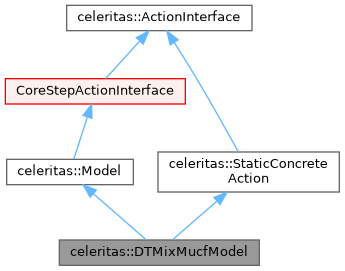

Inheritance diagram for celeritas::DTMixMucfModel:

Public Member Functions
	DTMixMucfModel (ActionId id, ParticleParams const &particles, MaterialParams const &materials)
	Construct from model ID and other necessary data.
SetApplicability	applicability () const final
	Particle types and energy ranges that this model applies to.
XsTable	micro_xs (Applicability) const final
	At-rest model does not require microscopic cross sections.
void	step (CoreParams const &, CoreStateHost &) const final
	Interact with host data.
void	step (CoreParams const &, CoreStateDevice &) const final
	Interact with device data.
Public Member Functions inherited from celeritas::Model
StepActionOrder	order () const final
	Dependency ordering of the action.
Public Member Functions inherited from celeritas::StepActionInterface< P, S >
virtual void	step (P const &, S< MemSpace::host > &) const =0
	Execute the action with host data.
virtual void	step (P const &, S< MemSpace::device > &) const =0
	Execute the action with device data.
Public Member Functions inherited from celeritas::ActionInterface
virtual	~ActionInterface () noexcept=0
	Default destructor.
Public Member Functions inherited from celeritas::StaticConcreteAction
	StaticConcreteAction (ActionId id, std::string_view label) noexcept(! 0)
	Construct a concrete action from a label and ID.
	StaticConcreteAction (ActionId id, std::string_view label, std::string_view description) noexcept(! 0)
	Construct a concrete action from an ID, a unique label, and a description.
	StaticConcreteAction (StaticConcreteAction const &)=delete
StaticConcreteAction &	operator= (StaticConcreteAction const &)=delete
	StaticConcreteAction (StaticConcreteAction &&)=delete
StaticConcreteAction &	operator= (StaticConcreteAction &&)=delete
ActionId	action_id () const final
	ID of this action for verification.
std::string_view	label () const final
	Short label.
std::string_view	description () const final
	Descriptive label.

Type aliases
using	HostRef = HostCRef< DTMixMucfData >
using	DeviceRef = DeviceCRef< DTMixMucfData >
HostRef const &	host_ref () const
DeviceRef const &	device_ref () const

Additional Inherited Members
Public Types inherited from celeritas::Model
using	XsTable = std::vector< inp::UniformGrid >
	Type aliases.
using	SetApplicability = std::set< Applicability >
Public Types inherited from celeritas::ActionTypeTraits< P, S >
using	CoreParams = P
using	CoreStateHost = S< MemSpace::host >
using	CoreStateDevice = S< MemSpace::device >
using	SpanCoreStateHost = Span< S< MemSpace::host > *const >
using	SpanCoreStateDevice = Span< S< MemSpace::device > *const >
Protected Member Functions inherited from celeritas::ActionInterface
	ActionInterface (ActionInterface const &)=default
ActionInterface &	operator= (ActionInterface const &)=default
	ActionInterface (ActionInterface &&)=default
ActionInterface &	operator= (ActionInterface &&)=default

Detailed Description

Muon-catalyzed fusion model for dd, dt, and tt molecules.

In this model the executor performs the full muon-catalyzed fusion workflow. It forms a muonic d or t atom, samples which muonic molecule will be produced, selects the channel, and calls the appropriate interactor.

The full set of "actions" is as follows, and in this ordering:

• Define muon decay time to compete with the rest of the execution
• Form muonic atom and select its spin
• May execute atom spin flip or atom transfer
• Form muonic molecule and select its spin
• Calculate mean cycle time (time it takes from atom formation to fusion)
• Confirm if fusion happens or the if the muon should decay
• Call appropriate Interactor: Muon decay, or one of the muCF interactors

Note

This is an at-rest model.

Member Typedef Documentation

DeviceRef

using celeritas::DTMixMucfModel::DeviceRef = DeviceCRef<DTMixMucfData>

Access model data

HostRef

using celeritas::DTMixMucfModel::HostRef = HostCRef<DTMixMucfData>

Access model data

Constructor & Destructor Documentation

DTMixMucfModel()

celeritas::DTMixMucfModel::DTMixMucfModel	(	ActionId	id,
		ParticleParams const &	particles,
		MaterialParams const &	materials
	)

Construct from model ID and other necessary data.

Most of the muon-catalyzed fusion data is static throughout the simulation, as it is only material-dependent (DT mixture and temperature). Therefore, most grids can be host-only and used to calculate final values, which are then cached and copied to device. The exception to this is the muon energy CDF grid, needed to sample the final state of the outgoing muon after a muCF interaction.

Todo:

Correctly update ImportProcessClass and ImportModelClass . These operate under the assumption that there is a one-to-one equivalente between Geant4 and Celeritas. But for muCF, everything is done via one process/model/executor in Celeritas, whereas in Geant4 atom formation, spin flip, atom transfer, etc., are are all separate processes.

Member Function Documentation

applicability()

auto celeritas::DTMixMucfModel::applicability ( ) const

finalvirtual

Particle types and energy ranges that this model applies to.

Implements celeritas::Model.

device_ref()

DeviceRef const & celeritas::DTMixMucfModel::device_ref ( ) const

inline

Access model data

host_ref()

HostRef const & celeritas::DTMixMucfModel::host_ref ( ) const

inline

Access model data

micro_xs()

auto celeritas::DTMixMucfModel::micro_xs ( Applicability  ) const

finalvirtual

At-rest model does not require microscopic cross sections.

Implements celeritas::Model.

---

The documentation for this class was generated from the following files:

• DTMixMucfModel.hh
• DTMixMucfModel.cc
• DTMixMucfModel.cu
