celeritas::test::LazyGeantGeoManager Class Reference

Base class for managing a persistent geometry built from Geant4. More...

#include <LazyGeantGeoManager.hh>

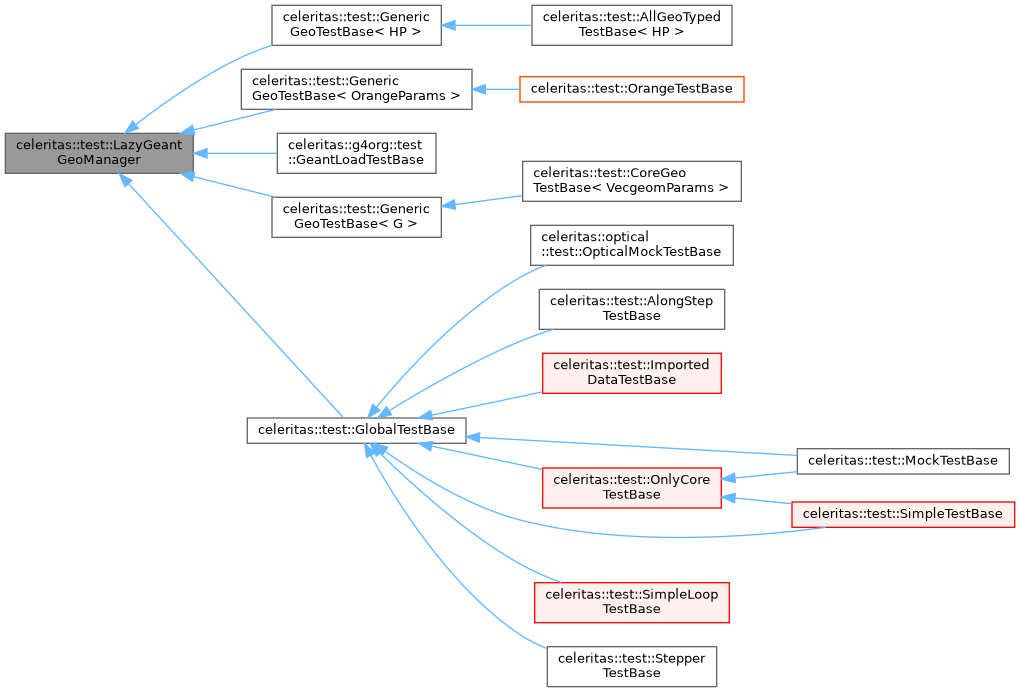

Inheritance diagram for celeritas::test::LazyGeantGeoManager:

Public Types
Type aliases
using	SPConstGeoI = std::shared_ptr< GeoParamsInterface const >
using	SPConstGeantGeo = std::shared_ptr< GeantGeoParams const >
using	SPConstVolumes = std::shared_ptr< VolumeParams const >

Public Member Functions
virtual std::string_view	gdml_basename () const =0
	Get an identifying key for the geometry (basename, description, etc)
virtual SPConstGeantGeo	build_geant_geo (std::string const &filename) const
	Build a Geant4 geometry.
virtual SPConstGeoI	build_geo_from_geant (SPConstGeantGeo const &) const =0
virtual SPConstGeoI	build_geo_from_gdml (std::string const &filename) const
	Build from a GDML path as a fallback.
std::string const &	cached_gdml_basename () const
	Access the basename of the geometry that's currently cached.
SPConstGeoI	lazy_geo () const
	Construct a geometry for the first time.
SPConstGeantGeo	geant_geo () const
	Access persistent geant geometry after construction.
SPConstVolumes	volumes () const
	Access volumes from built geometry or geant4 model.

Static Public Member Functions
static void	clear_lazy_geo ()
	Reset the secondary geometry manually.

Detailed Description

Base class for managing a persistent geometry built from Geant4.

Daughter classes must implement build_from_geant , and gdml_basename must return a filename prefix to a GDML file in geocel/test.

Member Function Documentation

build_geant_geo()

auto celeritas::test::LazyGeantGeoManager::build_geant_geo ( std::string const &  filename ) const

virtual

Build a Geant4 geometry.

Reimplemented in celeritas::test::SDTestBase, and celeritas::test::GeantTestBase.

build_geo_from_gdml()

auto celeritas::test::LazyGeantGeoManager::build_geo_from_gdml ( std::string const &  filename ) const

virtual

Build from a GDML path as a fallback.

Reimplemented in celeritas::test::GlobalTestBase.

build_geo_from_geant()

virtual SPConstGeoI celeritas::test::LazyGeantGeoManager::build_geo_from_geant ( SPConstGeantGeo const &  ) const

pure virtual

Implemented in celeritas::g4org::test::GeantLoadTestBase.

clear_lazy_geo()

void celeritas::test::LazyGeantGeoManager::clear_lazy_geo ( )

static

Reset the secondary geometry manually.

This is needed by AllGeoTypedTestBase, where multiple versions of the same Geant4 geometry are loaded in a single test.

gdml_basename()

virtual std::string_view celeritas::test::LazyGeantGeoManager::gdml_basename ( ) const

pure virtual

Get an identifying key for the geometry (basename, description, etc)

Implemented in celeritas::g4org::test::GeantLoadTestBase, celeritas::test::MscTestBase, celeritas::test::InvalidOrangeTestBase, celeritas::test::LArSphereBase, celeritas::test::LeadBoxTestBase, celeritas::test::MockTestBase, celeritas::test::OneSteelSphereBase, celeritas::optical::test::OpticalMockTestBase, celeritas::test::SimpleCmsTestBase, celeritas::test::SimpleTestBase, celeritas::test::TestEm15Base, celeritas::test::TestEm3Base, celeritas::test::GenericGeoTestBase< G >, celeritas::test::GenericGeoTestBase< HP >, celeritas::test::GenericGeoTestBase< OrangeParams >, and celeritas::test::GlobalTestBase.

---

The documentation for this class was generated from the following files:

• LazyGeantGeoManager.hh
• LazyGeantGeoManager.cc
